活塞、活塞環

John Deere約翰迪爾強鹿柴油發動機活塞、活塞環配件銷售維修維護技術零件資料手冊

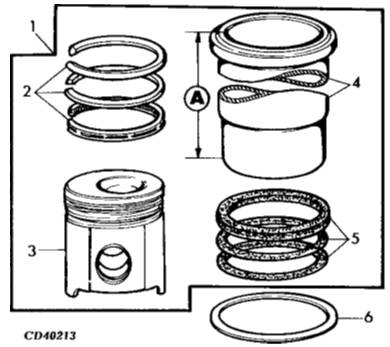

KEY PART NO. PART NAME QTY SERIAL NO. D T REMARKS

1 RE24458 PISTON-LINER KIT 4 X

RE22678 PISTON-LINER KIT 4 X

2 RE66820 PISTON RING KIT 1 X X PACKG (3)

3 .................. PISTON 1 X MARKED RE19282, ORD RE24458

.................. PISTON 1 X MARKED RE48368, ORD RE22678

4 R131575 CYLINDER LINER 1 X X A = 196MM

5 AR65507 O-RING KIT 1 X X PACKG (3)

6 CD15466 SHIM AR X X TK 0.05MM

R65833 SHIM AR X X TK 0.10MM
