氣門閥座、氣門、氣門彈簧、氣門鎖夾

John Deere約翰迪爾強鹿柴油發動機氣門閥座、氣門、氣門彈簧、氣門鎖夾配件銷售維修維護技術零件資料手冊

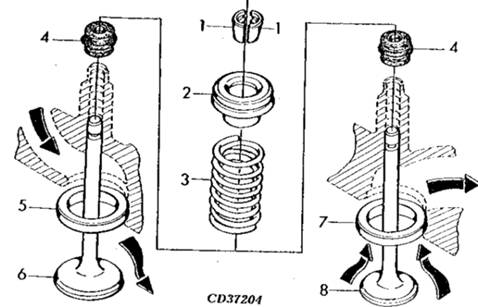

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 R91889 RETAINER 16 X OD 11.7MM

2 RE60005 ROTATOR 8 X

3 R26125 SPRING 8 X

4 RE31617 SEAL 8 X ID STANDARD,

5 R106831 VALVE SEAT INSERT 4 X OD 47.22MM, INTAKE

6 R98062 INTAKE VALVE 4 X OD STANDARD

R97490 INTAKE VALVE AR X OD +0.381MM

R97491 INTAKE VALVE AR X OD +0.762MM

7 R106829 VALVE SEAT INSERT 4 X OD 43.1MM, EXHAUST

8 R90692 EXHAUST VALVE 4 X OD STANDARD

R97492 EXHAUST VALVE AR X OD +0.381MM

R97493 EXHAUST VALVE AR X OD +0.762MM
